Need a custom SLD? We prepare single-line diagrams for your specific project.

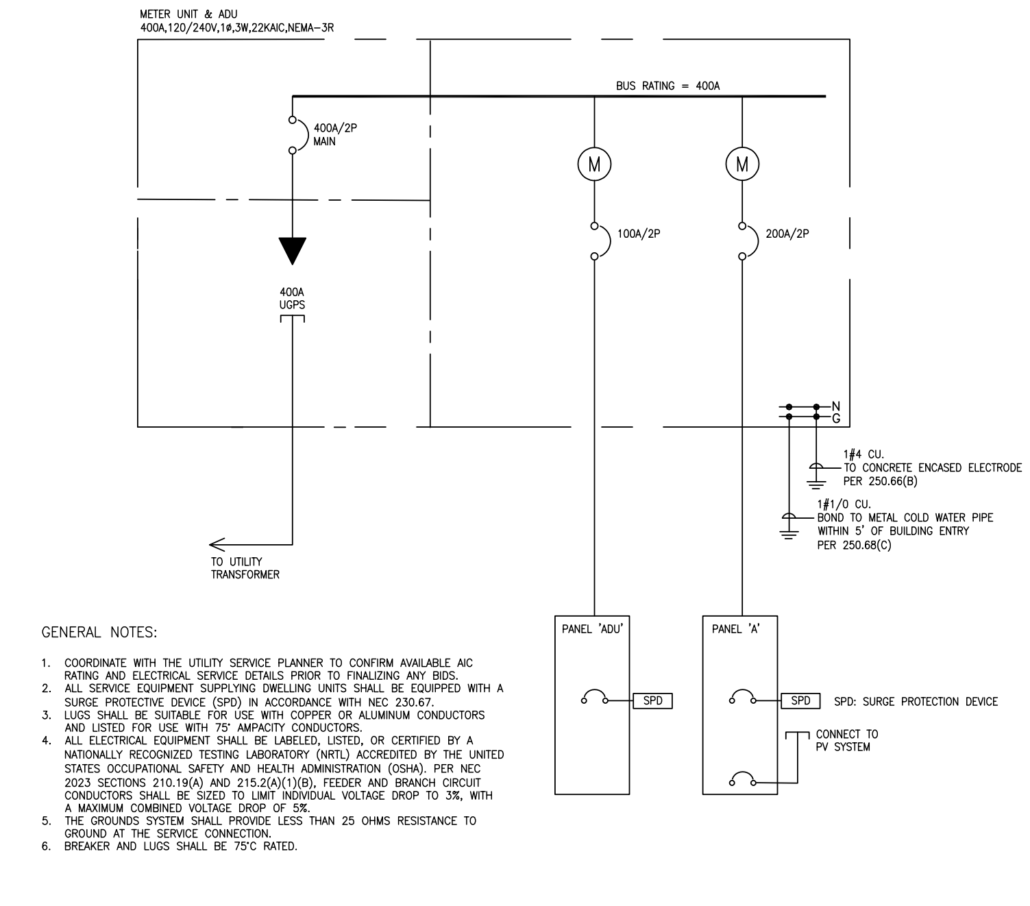

400A Single Phase Meter-Main 100A ADU 200A main house single line diagram Click to enlarge
400A Multi-Meter, 200A House + 100A ADU
Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire residential service using a two-position multi-meter (Square D MP Meter-Pak) serving a 200A main house and a 100A ADU. Shows the…
  • Voltage: 120/240V
  • Phase: Single-phase, 3-wire
  • Service: 400A
$5.00Instant download View SLD →
400A Single Phase Meter-Main 100A ADU 200A main house + BESS-California Energy Code Compliant single line diagram Click to enlarge
400A Multi-Meter, 200A House + 100A ADU + BESS-Ready
Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire residential service using a two-position compartmentalized multi-meter (Square D MP Meter-Pak) serving a 200A main house and a 100A ADU, with…
  • Voltage: 120/240V
  • Phase: Single-phase, 3-wire
  • Service: 400A
$5.00Instant download View SLD →
400A Single Phase Meter-Main 150A ADU 200A main house single line diagram Click to enlarge
400A Multi-Meter, 200A House + 150A ADU
Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire residential service using a two-position compartmentalized multi-meter (Square D MP Meter-Pak) serving a 200A main house and a 150A ADU. Shows…
  • Voltage: 120/240V
  • Phase: Single-phase, 3-wire
  • Service: 400A
$5.00Instant download View SLD →
400A Single Phase Meter-Main 150A ADU 200A main house + BESS-California Energy Code Compliant single line diagram Click to enlarge
400A Multi-Meter, 200A House + 150A ADU + BESS-Ready
Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire residential service using a two-position compartmentalized multi-meter (Square D MP Meter-Pak) serving a 200A main house and a 150A ADU, with…
  • Voltage: 120/240V
  • Phase: Single-phase, 3-wire
  • Service: 400A
$5.00Instant download View SLD →
