400A Multi-Meter two dwelling units single line diagram Click to enlarge
400A Multi-Meter + (2) 200A Dwelling Units

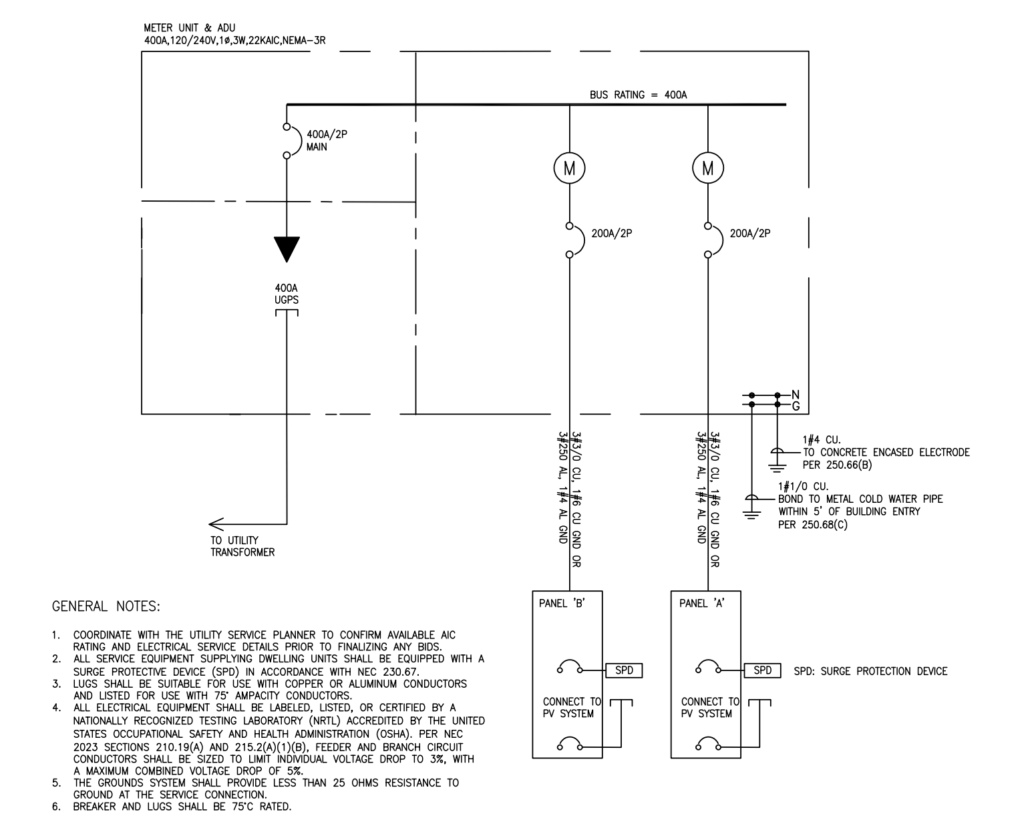

Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire service for a two-family dwelling, using a two-position compartmentalized multi-meter (Square D MP Meter-Pak) with a 200A tenant breaker serving each…
  • Voltage: 120/240V
  • Phase: Single-phase, 3-wire
  • Service: 400A
$5.99Instant download View SLD →
400A Multi-Meter two dwelling units single line diagram BESS-Ready Click to enlarge
400A Multi-Meter + (2) 200A Dwelling Units, BESS-Ready

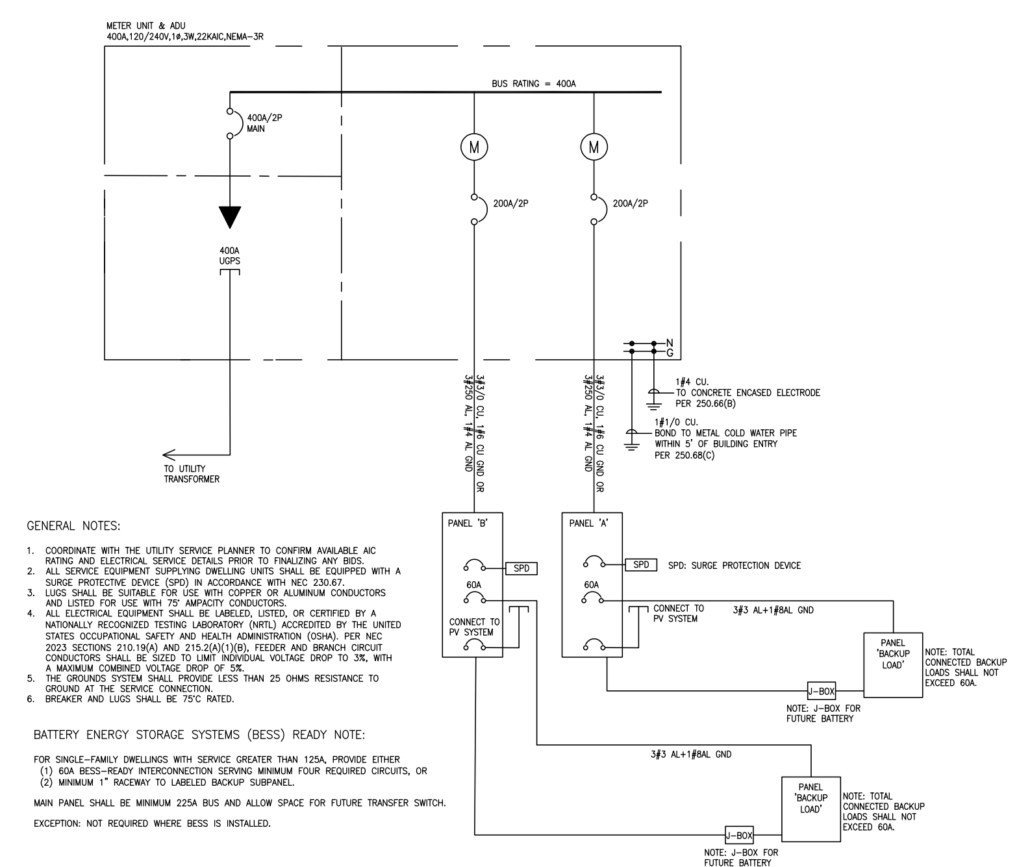

Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire service for a two-family dwelling, using a two-position compartmentalized multi-meter (Square D MP Meter-Pak) with a 200A tenant breaker serving each…
  • Voltage: 120/240V
  • Phase: Single-phase, 3-wire
  • Service: 400A
$5.99Instant download View SLD →
