400A Multi-Meter, 200A House + 150A ADU

/in /by

400A Multi-Meter, 200A House + 150A ADU

$5.99
PDFElevation PDFs

Single Dwelling Unit with ADU

Switchboard Elevations
Download Square D Elevation PDF Download Eaton Elevation PDF
Free download. No payment required.
Complete the PayPal payment to unlock the PDF.

Logged-in purchases remain available forever from this SLD page.

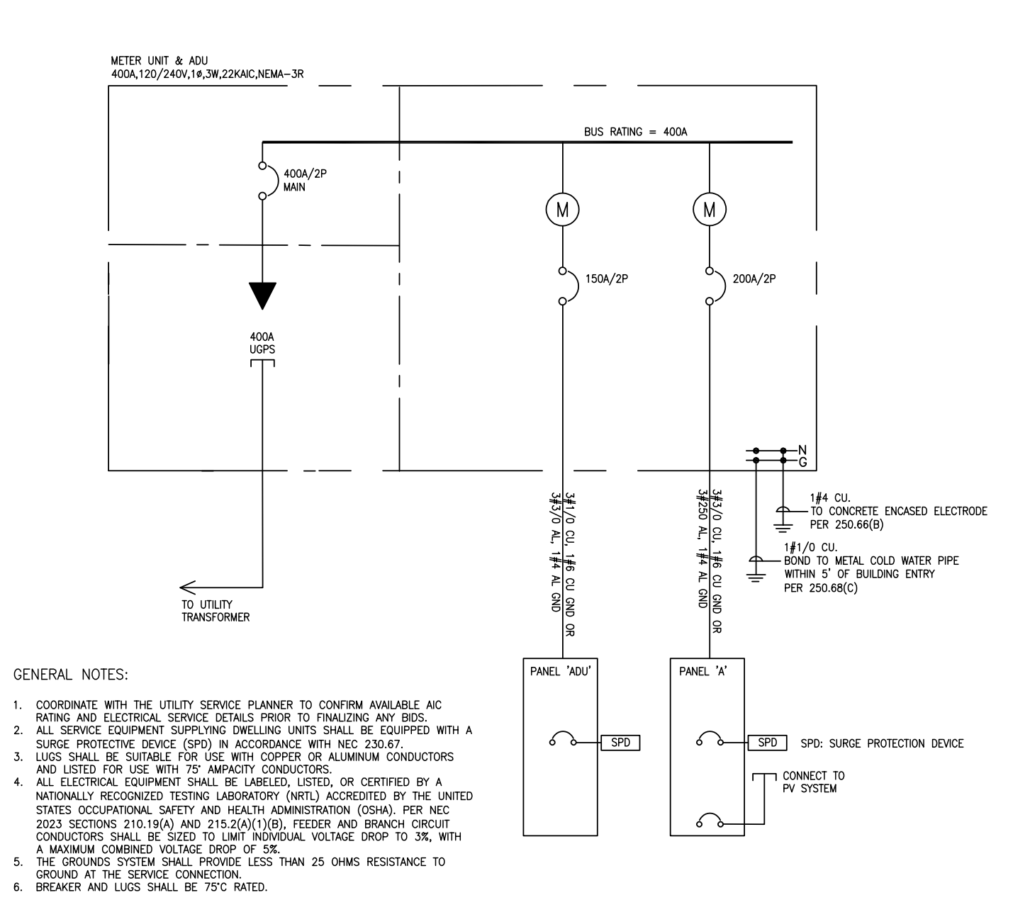

Typical single-line diagram for a 400A, 120/240V, single-phase, 3-wire residential service using a two-position compartmentalized multi-meter (Square D MP Meter-Pak) serving a 200A main house and a 150A ADU. Shows the two service disconnects, service and feeder conductor sizes in copper and aluminum, surge-protective devices, PV-ready backfeed breaker, ADU separate-structure requirements, and grounding electrode system per NEC 2023.
